PRODUCTS

NEW PERMANENT CATHODE PLATES



We manufacture new permanent and complete cathode plates for clients in copper, zinc and nickel refineries. We manufacture according the each client´s requirements. The new plates are manufacture in our Finnish factory located in Parkano, Finland.



The complete plates can include hanger bar using laser welding, permanent edge strips, hooks, V-groove, etc.









































Permanent EDGE STRIP MATERIALS:



     >  Polipropylene PP: when the temperatures used in production

            are over 70°c

    >  Poliethylene PEH: when the temperatures used in production

           are under 70°C

    >  For aluminum different solutions are offered.

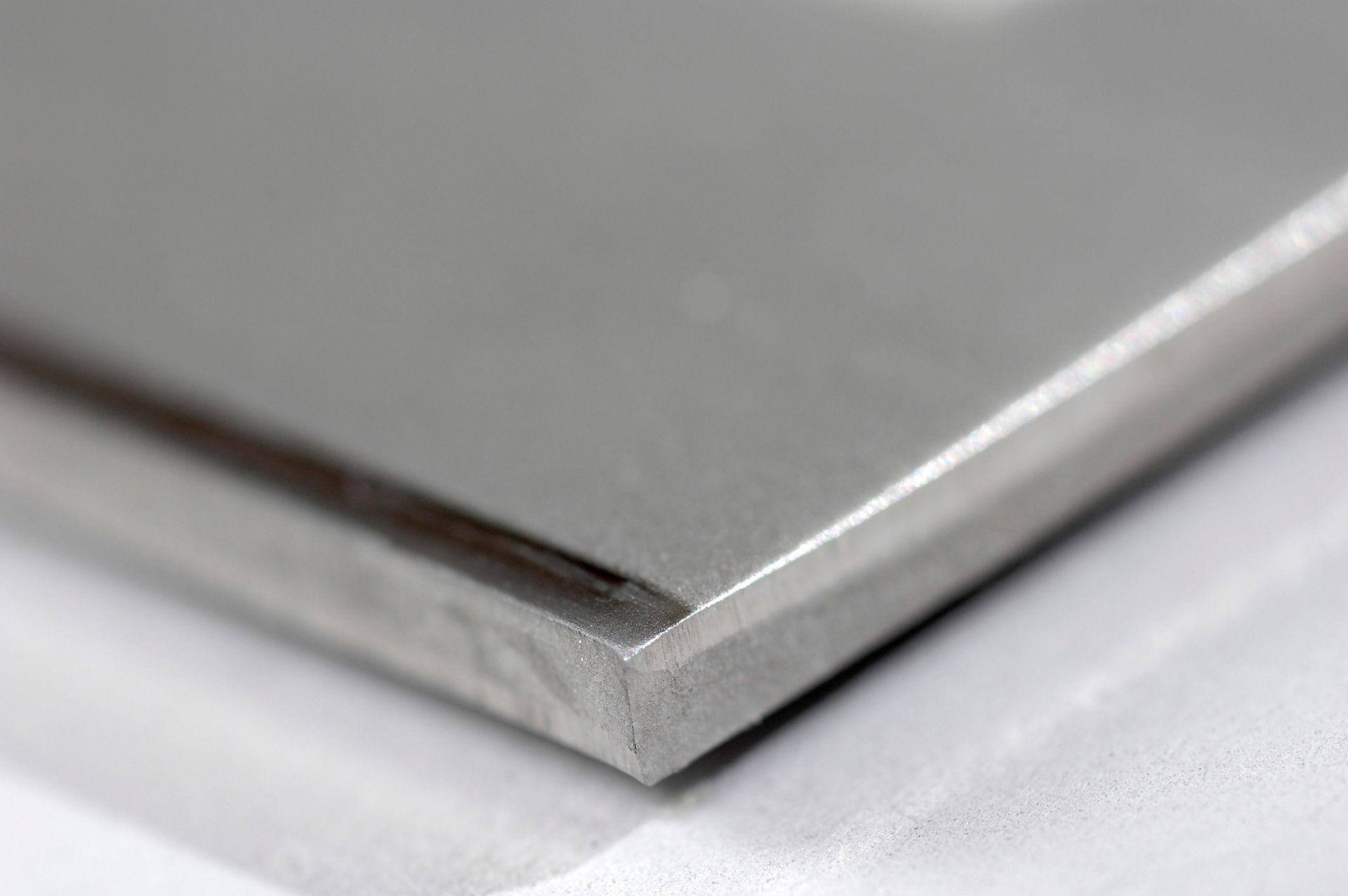

Cathodex offers the following SHEET MATERIALS:



        >  Stainless steel EN 1.4404, 2B –316L,

             thickness 3-3.5m

                                              Other material types are also available.



        >  Aluminum (different type of alloys and tempers

              available)  thickness 5-7mm



        >  Titanium

We manufacture according to the plate dimensions and requirements sent by the client

Depending on the client´s requirements the plate can be furnished with 2 edge strips on each lateral side and V-groove cut at the bottom of the plate, or three edge strip on each side of the plate.

HANGER BAR options:

We used automated laser welding C02, 6kW.



We offer different types of hanger bars, for example:

      > Explosion bonded : solid copper bar 98,99% Cu with 316 L

          stainless steel cover.



   > Cathodex own design.



We also manufacture the lifting hooks or lifting holes.
